The Balboa Niagara massage pump (previously called Ultimax) can be the best replacement part when a change is needed (especially in case of replacing Balboa Ultima and Ultramax pumps). Because of its small height, this massage pump could be found under the spa steps.

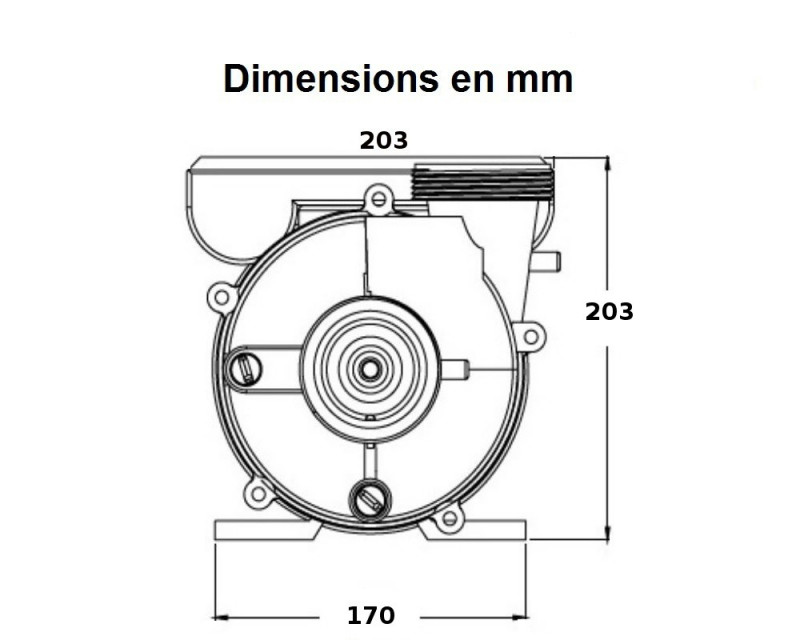

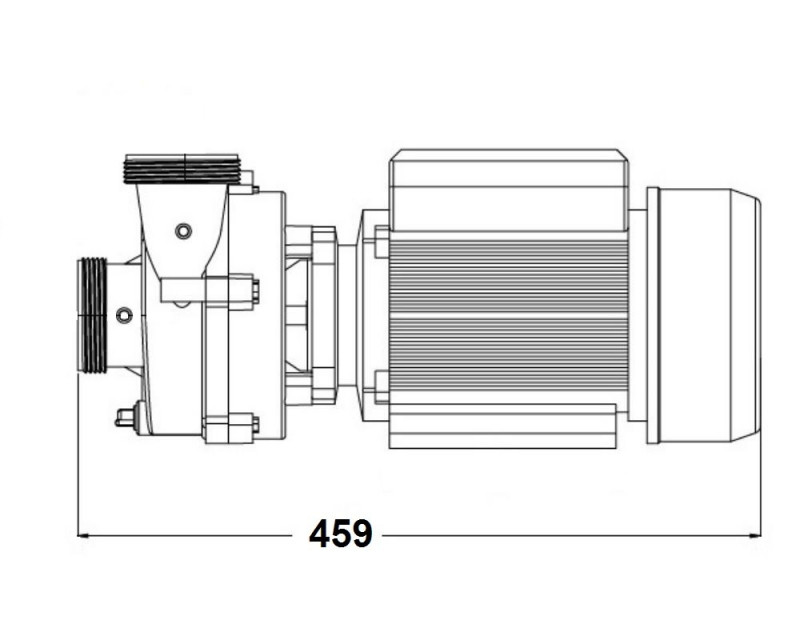

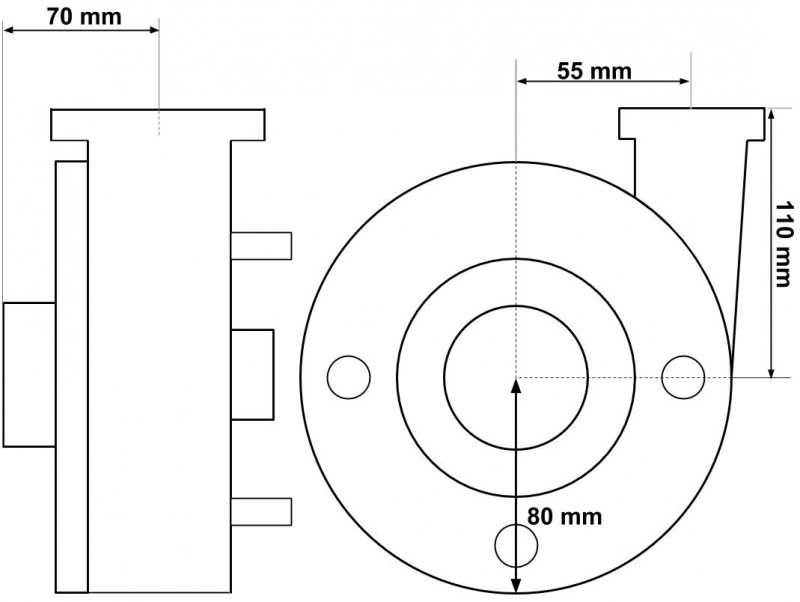

Dimensions See the photos.
Connections Male threaded, with an assymetric MBT 2" thread (outside diameter of 78 mm). This pump is normally connected to 2" pipe. The pump unions are not included in the price of this pump.
Power 3.0 HP version: 2.5 kW high speed/550W low speed
Current (on the motor plate) 3.0 HP version: 11.5A high speed/2.5A low speed
Motor speed 1450 rpm low speed 2900 rpm high speed
Cables and plugs If you are replacing of the pump and would like to keep the old power cords, just follow the wiring diagram on the inside cover of the connection panel.
