Calentador Dimension One 2.1 - 3,4kW Reflections Heater

Calentador Dimension One 2.1 - 3,4kW Reflections Heater

Reference: ID 271
VAT included
VAT included
Free Shipping to the Peninsule from 125€
Orders for the islands, Ceuta and Melilla contact

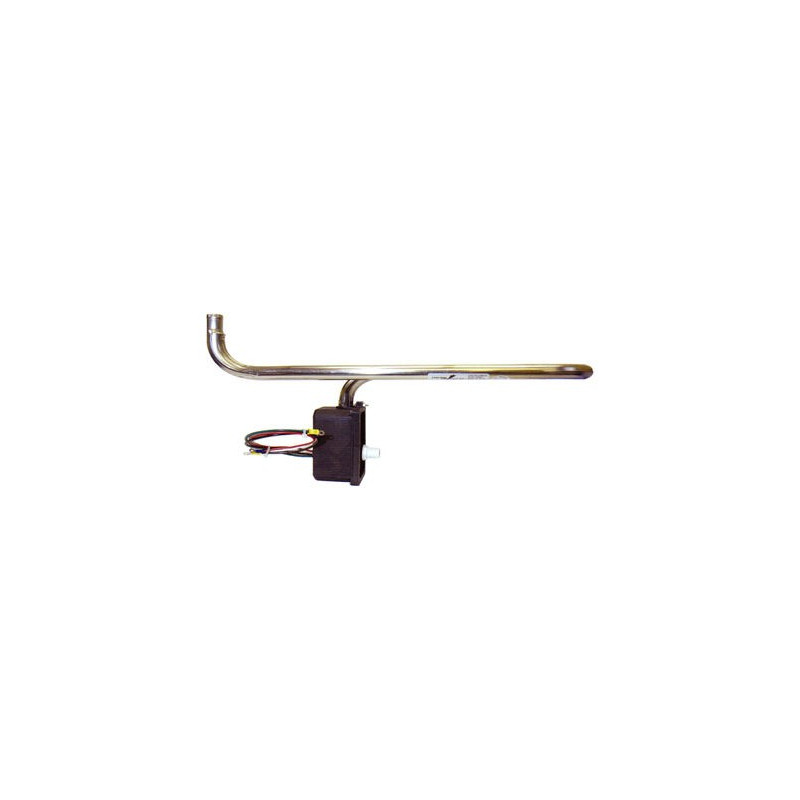

Heater assembly.

Type of product:

Heater assembly
Make and Model: Laing for Dimension One (D1) Reflection Series, known as FastFlo. C3548-1, 01781-20
Power: Volts: 230
Hz: 50
KW: 2.1kW & 3.4kW (either of these settings can be achieved by a simple wiring change)
Amps: 8.4 & 13.6
Specification Sensor compatibility: Dimension One sensors (Spa Builders)
Material spec:
Required flow rate:
Flow detection: Harwil reed flow switch
Compatible with:

Replacement option for: Dimension One Spa Laing 6144


Dimension One Reflection Series 1998 to present.

Models such as: Aurora, Aurora II, Arena, Caliente, Chairman, Chairman II, Diplomat, Triad, Triad II......

Connections / Fixings: The heating tube connects on to 3/4" Vinyl tubing.
Dimensions: Heater length: 520mm
Heater Diameter: 19mm (internal)
Between terminals: N/A
Overall length complete: 520mm
Additional notes: If your heater looks the same as this one it most probably is but contact us if you need further help.
